2L MT77 PCB 10mil Material Low-Loss Circuit Board
  • Nome

2L MT77 PCB 10mil Material Low-Loss Circuit Board

MOQ: 1 unidade
preço: USD9.99-99.99
Embalagem padrão: Sacos a vácuo+caixas
Período de entrega: 8-9 dias úteis
Método de pagamento: T/T
Capacidade de abastecimento: 5000pcs por mês
Informações
Descrição do produto
Informações pormenorizadas
Lugar de origem
China
Marca
Bicheng
Certificação
UL, ISO9001, IATF16949
Número do modelo
BIC-332.V1.0
Material base:
Astra MT77
Contagem de camadas:
2 camadas
Espessura da PCB:
0.33mm
Tamanho da placa de circuito impresso:
48,5 mm x 43,3 mm (1 peça), tolerância ± 0,15 mm
Silkscreen:
Branco
Máscara de solda:
Verde
Peso de cobre:
1 onça (1,4 mils/35 μm)
Acabamento de superfície:
ouro de imersão
Destacar:

2L MT77 RF PCB board

,

10mil low-loss circuit board

,

RF PCB with MT77 material

Descrição do produto

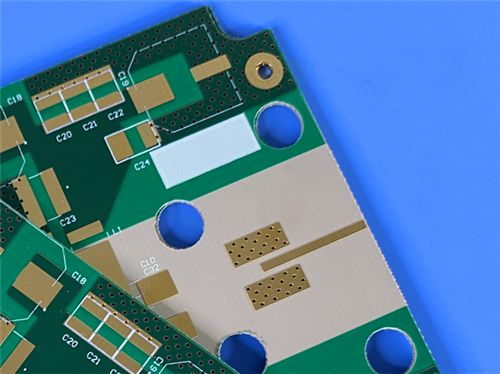

2L MT77 PCB 10mil Material Low-Loss Circuit Board
This 2-layer rigid PCB is built with Astra MT77--an advanced low-loss dielectric material--optimized for millimeter-wave and RF/microwave commercial applications.
PCB Specifications
Parameter Specification
Layer Count 2-layer rigid PCB
Base Material Astra MT77
Board Dimensions 48.5mm x 43.3mm (1 piece), tolerance ±0.15mm
Finished Board Thickness 0.33mm
Finished Copper Weight 1oz (1.4 mils / 35μm)
Via Plating Thickness 20μm
Minimum Trace/Space 4 mils / 4 mils
Minimum Hole Size 0.2mm
Vias 21 total (no blind vias)
Surface Finish Immersion Gold
Silkscreen Top: White; Bottom: No
Solder Mask Top: Green; Bottom: Green
Quality Assurance 100% Electrical test prior to shipment
Accepted Standard IPC-Class-2
Availability Worldwide
PCB Stack-up (Top to Bottom)
Layer Sequence Layer Type Specification Thickness
1 Copper Layer (Top - L1) Copper_layer_1 35μm (1oz)
2 Base Material Astra MT77 0.254mm (10mil)
3 Copper Layer (Bottom - L2) Copper_layer_2 35μm (1oz)
Astra MT77 Material Overview
Astra MT77 is a breakthrough dielectric material designed for millimeter-wave frequencies and beyond. It delivers exceptional electrical performance that remains stable across a broad frequency range and temperatures (-40°C to +140°C), even up to W-band frequencies. As a cost-effective alternative to PTFE and other commercial microwave laminates, it meets the demands of modern commercial RF/microwave printed circuit designs while offering ultra-low loss and reliable performance.
2L MT77 PCB 10mil Material Low-Loss Circuit Board 0
Key Features of Astra MT77
Property Specification
Dielectric Constant (Dk) 3.0 (2GHz/23°C; 10GHz/23°C)
Dissipation Factor (Df) 0.0017 (2GHz; 10GHz)
Peel Strength (1oz Copper) 5.7 lb/inch
Moisture Absorption 0.1%
Coefficient of Thermal Expansion (CTE) X-axis: 12 ppm/°C; Y-axis: 12 ppm/°C; Z-axis: 250-350 ppm/°C
Glass Transition Temperature (Tg) 200°C (DSC method)
Flammability Rating UL 94-V0
Process Compatibility Lead-free compatible
Processing Advantages
Astra MT77 simplifies manufacturing with multiple practical benefits:
  • Compatible with standard FR-4 processing workflows (no special equipment needed)
  • Short lamination cycles for improved production efficiency
  • Reduced drill wear to lower manufacturing costs
  • No plasma desmear required, streamlining processing steps
  • Good flow and fill characteristics for reliable layer adhesion
  • Strong dimensional stability across production and operating conditions
  • Supports multiple lamination cycles for flexible manufacturing
  • Compatible with any layer technology, HDI, and VIPPO designs
Typical Applications
This 2-layer Astra MT77 PCB is specifically tailored for automotive RF/microwave systems, including:
  • Long-range antennas and radar for adaptive cruise control
  • Pre-crash detection systems
  • Blind spot monitoring
  • Lane departure warning systems
  • Stop-and-go systems
2L MT77 PCB 10mil Material Low-Loss Circuit Board 1
