Descrição do produto

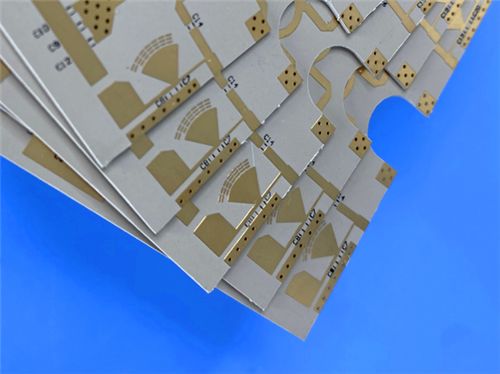

RT duroid 6006 PCB Rogers 10mil Laminate Black Silkscreen
This high-performance 2-layer PCB is constructed with Rogers RT/duroid 6006--a ceramic-PTFE composite engineered for electronic and microwave applications requiring high dielectric constant (Dk) and low loss. Designed to enable circuit size reduction while maintaining repeatable performance, it adheres to IPC-Class-2 standards and is optimized for X-band and below operations.
PCB Specification
Parameter Details
Base Material Rogers RT/duroid 6006 (ceramic-PTFE composite)
Layer Count 2-Layer rigid PCB
Board Dimensions 43mm x 107.5mm (1 piece)±0.15mm
Minimum Trace/Space 4/4 mils
Minimum Hole Size 0.2mm
Via Type No blind vias (thru-hole vias only)
Finished Board Thickness 0.35mm
Finished Copper Weight (Outer Layers) 1oz (equivalent to 1.4 mils / 35 μm per layer)
Via Plating Thickness 20 μm
Surface Finish Immersion Gold (enhanced conductivity, corrosion resistance)
Silkscreen Top: Black; Bottom: No
Solder Mask Top: No; Bottom: No
Quality Assurance 100% Electrical test prior to shipment
PCB Stack-up Details
Layer Type Material/Description Thickness
Copper Layer 1 (Outer) Conductive electrodeposited copper (finished) 35 μm (1oz)
Dielectric Layer Rogers RT/duroid 6006 0.254 mm (10 mils)
Copper Layer 2 (Outer) Conductive electrodeposited copper (finished) 35 μm (1oz)
Material Overview: Rogers RT/duroid 6006
Rogers RT/duroid 6006 is a premium ceramic-PTFE composite laminate tailored for microwave and electronic circuits demanding high dielectric constant. Its unique formulation delivers low electrical loss, making it ideal for X-band and lower frequency applications, while tight control over Dk and thickness ensures consistent, repeatable circuit performance.
RT duroid 6006 PCB Rogers 10mil Laminate Black Silkscreen 0
Key Material Features
Specification Value
Material Type Ceramic-PTFE composite
Dielectric Constant (Dk) 6.15 ± 0.15 at 10 GHz / 23°C
Dissipation Factor (tanδ) 0.0027 at 10 GHz / 23°C
Thermal Stability (Td, TGA) >500 °C
Moisture Absorption 0.05%
Coefficient of Thermal Expansion (CTE) - X-axis 47 ppm/°C
Coefficient of Thermal Expansion (CTE) - Y-axis 34 ppm/°C
Coefficient of Thermal Expansion (CTE) - Z-axis 117 ppm/°C
Copper Foil Type Standard/reverse treated electrodeposited
Flammability Rating UL 94-V0
Lead-Free Compatibility Yes
Core Benefits
  • Circuit Miniaturization: High Dk (6.15) enables significant reduction in board size without compromising performance.
  • Low Loss Performance: Ideal for X-band and below applications, ensuring efficient signal transmission with minimal attenuation.
  • Repeatable Reliability: Tight Dk and thickness control guarantees consistent performance across production runs.
  • Moisture Resilience: Low moisture absorption (0.05%) ensures stability in humid or harsh environments.
  • Manufacturing Flexibility: Compatible with lead-free processes and reliable for plated through-holes (supports multi-layer scalability).
Typical Applications
This PCB is engineered for high-reliability, space-constrained systems, including:
  • Patch Antennas
  • Satellite Communications Systems
  • Power Amplifiers
  • Aircraft Collision Avoidance Systems
  • Ground Radar Warning Systems
This RT duroid 6006 PCB is available worldwide. Contact us if you have any project requirement.
