Rogers RO3210 PCB 0.6mm Thick with White Silkscreen

MOQ:	1pcs
preço:	USD9.99-99.99
Embalagem padrão:	Sacos a vácuo+caixas
Período de entrega:	8-9 dias úteis
Método de pagamento:	T/T.
Capacidade de abastecimento:	5000pcs por mês

Informações

Descrição do produto

Informações pormenorizadas

Lugar de origem

CHINA

Marca

Bicheng

Certificação

UL, ISO9001, IATF16949

Número do modelo

BIC-052.V1.0

Material base:

Rogers RO3210

Contagem de camadas:

2 camadas

Espessura da PCB:

0,6 mm

Tamanho da PCB:

54,5 mm x 50 mm

Peso de cobre:

1oz (equivalente a 1,4 mils ou 35μm)

Acabamento superficial:

ouro de imersão

Destacar:

Rogers RO3210 PCB board

0.6mm thick Rogers PCB

white silkscreen Rogers PCB

Descrição do produto

Rogers RO3210 PCB 0.6mm Thick with White Silkscreen

This PCB is a high-performance 2-layer rigid board crafted from Rogers RO3210 material, designed to meet strict electrical and mechanical standards. It is ideally suited for applications that demand low-loss, high-frequency performance, such as 5G communication infrastructure etc.

1. PCB Specifications

Parameter	Value
Base Material	Rogers RO3210 (ceramic-filled, woven fiberglass-reinforced PTFE laminate)
Layer Count	2-layer (rigid structure)
Board Dimensions	54.5mm x 50mm per piece, with a tolerance of ±0.15mm
Minimum Trace/Space	5 mils (trace) / 8 mils (space)
Minimum Hole Size	0.3mm
Vias	No blind vias; all vias feature a plating thickness of 20 μm
Finished Board Thickness	0.6mm
Finished Copper Weight	1oz (equivalent to 1.4 mils) for outer layers (Copper_layer_1 and Copper_layer_2)
Surface Finish	Immersion Gold (ensures excellent solderability and corrosion resistance)
Silkscreen	White silkscreen on the top layer; no silkscreen on the bottom layer
Solder Mask	Blue solder mask on the top layer; no solder mask on the bottom layer
Quality Assurance	100% electrical testing conducted prior to shipment to ensure functional integrity

2. PCB Stack-up Configuration

Layer Name	Material	Thickness
Top Layer (Copper_layer_1)	35 μm thick copper	35 μm (1oz finished copper weight)
Core Layer	Rogers RO3210	0.508mm (20mil)
Bottom Layer (Copper_layer_2)	35 μm thick copper	35 μm

3. Artwork and Quality Standards

Artwork Format: Gerber RS-274-X (the industry-standard format for PCB manufacturing, ensuring compatibility with most fabrication equipment)

Quality Standard: Complies with IPC-Class-2 (meets high reliability requirements for commercial and industrial applications)

Availability: Globally available, supporting global project requirement.

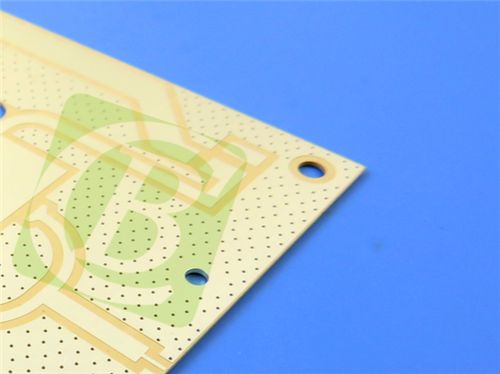

Rogers RO3210 PCB 0.6mm Thick with White Silkscreen 0

4. Introduction to Rogers RO3210 Base Material

Rogers' RO3210 is a premium high-frequency circuit material engineered for demanding applications. It is a ceramic-filled laminate reinforced with woven fiberglass, combining two key advantages: the surface smoothness of non-woven PTFE laminates (enabling finer line etching) and the rigidity of woven-glass PTFE laminates (enhancing handling and durability). Critically, RO3210 can be fabricated into PCBs using standard PTFE circuit board processing techniques, simplifying manufacturing without compromising performance.

5. Key Features of RO3210 Material

Property	Value	Significance
Dielectric Constant (Dk)	10.2 ± 0.5	Stable across frequency ranges, ideal for high-frequency signal integrity
Dissipation Factor	0.0027 at 10GHz	Extremely low, minimizing signal loss in high-frequency applications
Coefficient of Thermal Expansion (CTE)	x-axis: 13 ppm/°Cy-axis: 13 ppm/°Cz-axis: 34 ppm/°C	Matched to copper, reduces thermal stress during assembly and operation
Decomposition Temperature (Td)	500 °C (TGA)	Ensures stability at high temperatures during soldering and harsh operating conditions
Thermal Conductivity	0.81 W/mK	Enables efficient heat dissipation, protecting components from overheating
Flammability	Complies with UL 94 V0 standard	High fire resistance, enhancing safety in various environments

6. Benefits of RO3210 Material (and the PCB)

The use of RO3210 translates to multiple advantages for the PCB, making it suitable for high-performance applications:

Woven Glass Reinforcement: Improves rigidity, making the PCB easier to handle during manufacturing, assembly, and installation.

Uniform Electrical and Mechanical Performance: Ensures consistency across the board, making it ideal for complex multi-layer high-frequency structures.

Low In-Plane Expansion Coefficient (Matched to Copper):

Suitable for hybrid designs with epoxy multi-layer boards (enabling integration into larger systems).

Supports reliable surface-mounted assemblies (reducing the risk of solder joint failure due to thermal mismatch).

Excellent Dimensional Stability: Minimizes warpage or distortion during manufacturing and operation, leading to high production yields and long-term reliability.

Surface Smoothness: Allows for finer line etching tolerances (supporting the PCB’s 5/8 mils trace/space requirement) and precise component placement.

7. Typical Applications

- Automotive collision avoidance systems

- Automotive global positions satellite antennas

- Wireless telecommunications systems

- Microstrip patch antennas for wireless communications

- Direct broadcast satellites

- Datalink on cable systems

- Remote meter readers

- Power backplanes

- LMDS and wireless broadband

- Base station infrastructure

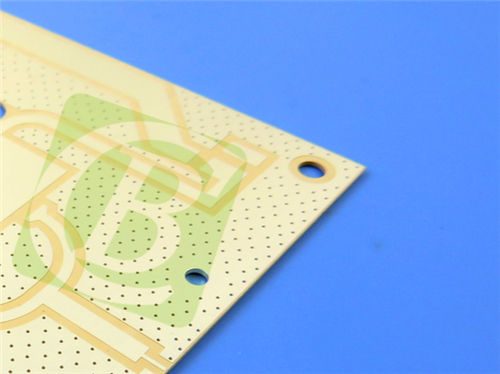

Rogers RO3210 PCB 0.6mm Thick with White Silkscreen 1

Tags:

RO4003C LoPro Rogers PCB Board,

8mil Rogers PCB Board,

0.5oz Rogers PCB Board
