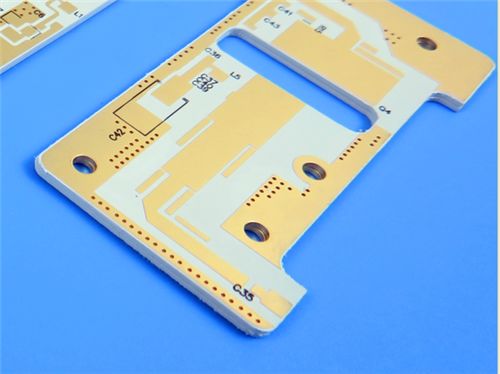

Rogers RO3010 PCB 25mil Thick Double-layer pcb Board
produtos

Placa do PWB do RF

Placa do PWB de Rogers

Placa do PWB de PTFE

PWB alto do Tg

Multi PWB da camada

PWB Taconic

Placa do PWB de HDI

PWB de alta velocidade

A impedância controlou o PWB

Placa flexível do PWB

placa do PWB fr4

estêncil do PWB

PWB do núcleo do metal
Contacte-nos
Ms. Ivy Deng
sales10@bichengpcb.com
86-755-27374847
Contacte agora
Rogers RO3010 PCB 25mil Thick Double-layer pcb Board
  • Nome

Rogers RO3010 PCB 25mil Thick Double-layer pcb Board

MOQ: 1 unidade
preço: USD9.99-99.99
Embalagem padrão: Sacos a vácuo+caixas
Período de entrega: 8-9 dias úteis
Método de pagamento: T/T
Capacidade de abastecimento: 5000pcs por mês
Informações
Descrição do produto
Informações pormenorizadas
Lugar de origem
China
Marca
Bicheng
Certificação
UL, ISO9001, IATF16949
Número do modelo
BIC-332.V1.0
Material base:
Rogers RO3010
Contagem de camadas:
2 camadas
Espessura da PCB:
0,8 mm
Tamanho da placa de circuito impresso:
45mm x 65mm (1 peça)
Silkscreen:
Preto
Máscara de solda:
não
Peso de cobre:
1 onça (1,4 mils) para camadas externas
Acabamento de superfície:
ouro de imersão
Destacar:

Rogers RO3010 PCB board

,

double-layer PCB board 25mil

,

Rogers high-frequency PCB

Descrição do produto
Rogers RO3010 PCB 25mil Thick Double-layer pcb Board
Crafted for precision and reliability, this 2-layer rigid PCB leverages Rogers RO3010--a ceramic-filled PTFE composite material--to deliver exceptional high-frequency performance, dimensional stability, and circuit miniaturization.
PCB Specification
Parameter Specification
Layer Count 2-layer rigid PCB
Base Material Rogers RO3010 (ceramic-filled PTFE composite)
Board Dimensions 45mm x 65mm (1 piece)
Finished Board Thickness 0.8mm
Finished Copper Weight (Outer Layers) 1oz (1.4 mils / 35μm)
Via Plating Thickness 20μm
Minimum Trace/Space 4 mils / 4 mils
Minimum Hole Size 0.3mm
Vias 12 total (no blind vias)
Surface Finish Immersion Gold
Silkscreen Top: Black; Bottom: No
Solder Mask Top: No; Bottom: No
Quality Assurance 100% Electrical test prior to shipment
PCB Stack-up (Top to Bottom)
Layer Sequence Layer Type Specification Thickness
1 Copper Layer (Top - L1) Copper_layer_1 35μm (1oz)
2 Substrate Rogers RO3010 0.635mm (25mil)
3 Copper Layer (Bottom - L2) Copper_layer_2 35μm (1oz)
Rogers RO3010 Material Overview
Rogers RO3010 is an advanced circuit material categorized as a ceramic-filled PTFE composite, designed to deliver a high dielectric constant (Dk) with exceptional stability across broad frequencies and environmental conditions. As a competitively priced solution, it combines superior mechanical and electrical performance, simplifying the design of broadband components while enabling circuit miniaturization-- a key advantage for space-constrained applications. Its consistent characteristics make it suitable for a wide range of high-frequency use cases, from automotive radar to satellite communications, while supporting volume manufacturing with cost-effective pricing.
Rogers RO3010 PCB 25mil Thick Double-layer pcb Board 0
Key Features of Rogers RO3010
Property Specification
Dielectric Constant (Dk) 10.2 ±0.30 (10GHz/23°C)
Dissipation Factor (Df) 0.0022 (10GHz/23°C)
Coefficient of Thermal Expansion (CTE) X-axis: 13 ppm/°C; Y-axis: 11 ppm/°C; Z-axis: 16 ppm/°C (-55°C to 288°C)
Thermal Decomposition Temperature (Td) >500°C
Thermal Conductivity 0.95 W/mK
Moisture Absorption 0.05%
Operating Temperature Range -40°C to +85°C
Quality Certification ISO 9001 Certified
Core Benefits of Rogers RO3010
  • Dimensional Stability: CTE closely matched to copper, ensuring minimal warpage or layer separation during thermal cycling and processing.
  • Cost-Effective Volume Production: Economical laminate pricing makes it ideal for high-volume manufacturing without compromising performance.
  • Broadband Compatibility: Exceptional electrical and mechanical stability across a wide frequency range, simplifying broadband component design.
  • Circuit Miniaturization: High Dk enables smaller circuit footprints, supporting space-efficient designs for compact devices.
  • Multi-Layer Versatility: Suitable for multi-layer board designs, offering flexibility for complex circuit architectures.
Typical Applications
This 2-layer RO3010 PCB is tailored for high-frequency, high-reliability systems across industries:
  • Automotive radar applications (e.g., adaptive cruise control, collision avoidance)
  • Global Positioning System (GPS) antennas
  • Cellular telecommunications systems (power amplifiers, antennas)
  • Patch antennas for wireless communications
  • Direct broadcast satellite (DBS) equipment
  • Cable system datalinks
  • Remote meter readers
  • Power backplanes
Compliant with IPC-Class-2 standards and available globally, it is engineered to meet the demands of automotive, telecommunications, and satellite systems, where a high dielectric constant (Dk) and low loss are non-negotiable.
