1.524mm RO4350B PCB Double-Sided Rogers RF Laminate

MOQ:	1pcs
preço:	USD9.99-99.99
Embalagem padrão:	Sacos a vácuo+caixas
Período de entrega:	8-9 dias úteis
Método de pagamento:	T/T.
Capacidade de abastecimento:	5000pcs por mês

Informações

Descrição do produto

Informações pormenorizadas

Lugar de origem

CHINA

Marca

Bicheng

Certificação

UL, ISO9001, IATF16949

Número do modelo

BIC-052.V1.0

Material base:

Rogers RO4350B

Contagem de camadas:

2 camadas

Espessura da PCB:

1,6 mm

Tamanho da PCB:

80 mm x 75 mm por peça, tolerância de ± 0,15 mm

Peso de cobre:

1oz (equivalente a 1,4 mils ou 35μm)

Acabamento superficial:

ouro de imersão

Destacar:

1.524mm Rogers RF laminate PCB

double-sided Rogers PCB board

RO4350B RF laminate PCB

Descrição do produto

1.524mm RO4350B PCB Double-Sided Rogers RF Laminate

This PCB is a high-performance 2-layer rigid RF (Radio Frequency) board, constructed using Rogers RO4350B material. It is tailored for applications requiring reliable RF performance, cost-effectiveness, and compatibility with standard manufacturing processes, making it an excellent choice for cellular infrastructure, automotive radar systems, and satellite communication components.

1. PCB Specifications

Parameter	Specification
Base Material	Rogers RO4350B (woven glass-reinforced hydrocarbon/ceramic laminate)
Layer Count	2-layer (rigid RF structure)
Board Dimensions	80mm x 75mm per piece, ±0.15mm tolerance
Minimum Trace/Space	4 mils (trace) / 4 mils (space)
Minimum Hole Size	0.3mm
Vias	No blind vias; 20 μm plating thickness
Finished Board Thickness	1.6mm
Finished Copper Weight	1oz (1.4 mils) for outer layers (Copper_layer_1 & Copper_layer_2)
Surface Finish	Immersion Gold
Silkscreen	White (top layer); None (bottom layer)
Solder Mask	None (top and bottom layers)
Quality Assurance	100% electrical testing before shipment

2. PCB Stack-up Configuration

The 2-layer rigid RF PCB features a simplified yet high-performance stackup, optimized for consistent RF signal transmission and mechanical stability. Each layer is carefully selected to align with the material’s strengths and the board’s functional needs:

Layer Name	Material	Thickness
Top Layer (Copper_layer_1)	35 μm thick copper	35 μm (1oz finished weight)
Core Layer	Rogers RO4350B	1.524mm (60mil)
Bottom Layer (Copper_layer_2)	35 μm thick copper	35 μm

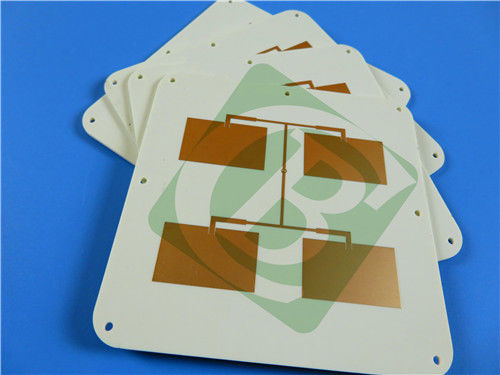

1.524mm RO4350B PCB Double-Sided Rogers RF Laminate 0

3. Artwork and Quality Standards

This PCB meets industry standards for compatibility and reliability:

Artwork Format: Gerber RS-274-X, the universal format ensuring seamless manufacturing integration.

Quality Standard: IPC-Class-2 compliant, suitable for commercial/industrial RF systems.

Availability: This PCB is globally accessible for production and delivery.

4. Introduction to Rogers RO4350B Base Material

Rogers RO4350B is a proprietary high-performance material engineered to bridge the gap between premium PTFE-based RF laminates and cost-effective epoxy/glass boards. It is a woven glass-reinforced hydrocarbon/ceramic composite that delivers electrical performance comparable to PTFE/woven glass (low loss, stable dielectric constant) while maintaining the manufacturability of standard epoxy/glass laminates.

A key advantage of RO4350B is its cost efficiency—it is available at a fraction of the cost of conventional microwave laminates. Unlike PTFE-based materials, it does not require special through-hole treatments or delicate handling procedures, simplifying manufacturing and reducing production costs. Additionally, it holds a UL 94 V-0 flammability rating, making it suitable for active RF devices and high-power RF designs where safety is critical.

5. Key Features of RO4350B Material

Property	Value	Significance
Dielectric Constant (Dk)	3.48 ± 0.05 (10GHz/23°C)	Consistent RF signal propagation; critical for antenna and amplifier designs
Dissipation Factor	0.0037 (10GHz/23°C)	Low signal loss; preserves RF signal strength in high-frequency paths
Thermal Coefficient of Dk	+50 ppm/°C (-50°C to 150°C)	Stable Dk across temperature ranges; ideal for automotive/outdoor use
Thermal Conductivity	0.69 W/m/°K	Efficient heat management; protects RF components from overheating
CTE (X/Y/Z axes)	10/12/32 ppm/°C	Low in-plane expansion matches copper; reduces thermal stress
Glass Transition Temperature (Tg)	>280°C	High thermal stability; supports lead-free soldering
Water Absorption	0.06%	Minimal moisture impact; stable performance in humid environments
Flammability	UL 94 V-0	Fire safety compliance for enclosed electronic systems

6. Typical Applications

Leveraging the performance and cost benefits of Rogers RO4350B, this 2-layer RF PCB is well-suited for the following applications:

-Cellular Infrastructure: Cellular base station antennas and power amplifiers (reliable RF performance for long-range signal transmission)

-RF Identification (RFID): RFID tags (low loss and compact design support efficient tag communication)

-Automotive Electronics: Automotive radar and sensors (temperature stability and durability meet automotive environmental demands)

-Satellite Communications: Low Noise Blocks (LNBs) for direct broadcast satellites (stable Dk and low loss ensure clear satellite signal reception)

1.524mm RO4350B PCB Double-Sided Rogers RF Laminate 1
