2-Layer IsoClad 933 RF PCB Board with 155.4mm × 188mm Size and Dielectric Constant 2.33
  • Nome

2-Layer IsoClad 933 RF PCB Board with 155.4mm × 188mm Size and Dielectric Constant 2.33

MOQ: 1pcs
preço: USD9.99-99.99
Embalagem padrão: Sacos a vácuo+caixas
Período de entrega: 8-9 dias úteis
Método de pagamento: T/T.
Capacidade de abastecimento: 5000pcs por mês
Informações
Descrição do produto
Informações pormenorizadas
Lugar de origem
CHINA
Marca
Bicheng
Certificação
UL, ISO9001, IATF16949
Número do modelo
BIC-052.V1.0
Material base:
IsoClad 933
Contagem de camadas:
2 camadas
Espessura da PCB:
1,6 mm
Tamanho da PCB:
155,4 mm × 188mm ± 0,15 mm
Peso de cobre:
1oz (equivalente a 1,4 mils ou 35μm)
Acabamento superficial:
Gold de imersão em níquel com eletrólito (enig)
Destacar:

IsoClad 933 RF PCB Board

,

155.4mm × 188mm RF PCB Board

,

Dielectric Constant 2.33 PCB Substrate

Descrição do produto
2-Layer IsoClad 933 PCB 62mil Substrates with ENIG Finish
The 2-layer PCB featuring Diclad 933 as its base material is a high-performance electronic component designed to meet the demands of various complex applications. With its unique material properties and precise construction, this PCB stands out as a reliable choice for engineers and manufacturers seeking top-notch performance.
PCB Specification
Parameter Technical Details
Base Material IsoClad 933 (high-performance dielectric material)
Layer Count 2-layer rigid configuration
Board Dimensions 155.4mm × 188mm ±0.15mm
Minimum Trace/Space 4/6 mils
Minimum Hole Size 0.3mm
Vias No blind vias; via plating thickness 20 μm
Finished Board Thickness 1.6mm
Finished Copper Weight 1oz (1.4 mils) for outer layers
Surface Finish Electroless Nickel Immersion Gold (ENIG)
Top Silkscreen White
Bottom Silkscreen No
Top Solder Mask Black
Bottom Solder Mask No
Quality Assurance 100% electrical testing (continuity, isolation)
PCB Stack-up
This 2-layer rigid PCB has the following stack-up structure:
Copper_layer_1 Copper 35 μm Core IsoClad 933 62mil (1.575 mm) Copper_layer_2 Copper 35 μm
This stack-up ensures efficient signal transmission and stable insulation between the two copper layers.
Artwork and Quality: Ensuring Manufacturing Excellence
Artwork Type: The supplied artwork is in Gerber RS-274-X format, the industry standard for PCB manufacturing, ensuring compatibility with most fabrication processes.
Quality Standard: Adheres to IPC-Class-2, a widely recognized quality standard that guarantees reliable performance in general electronic applications, making it suitable for a broad range of uses.
Availability: Accessible Worldwide
This 2-layer IsoClad 933 PCB is available worldwide, ensuring that engineers, manufacturers, and hobbyists across the globe can benefit from its exceptional features.

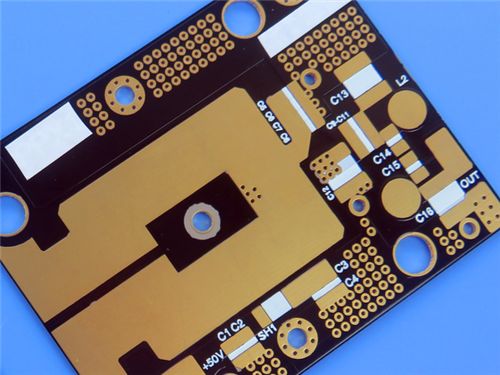

2-Layer IsoClad 933 RF PCB Board with 155.4mm × 188mm Size and Dielectric Constant 2.33 0
Introduction to IsoClad 933: A Superior Base Material
IsoClad 933 laminates are nonwoven fiberglass/PTFE composites designed specifically for use as printed circuit board substrates. What sets them apart is their nonwoven reinforcement, which makes them highly flexible. This flexibility allows the final circuit to be easily bent to shape, making them ideal for applications like conformal or "wrap-around" antennas.
Compared to competitive nonwoven fiberglass/PTFE laminates with similar dielectric constants, IsoClad 933 products use longer random fibers and a proprietary manufacturing process. This results in greater dimensional stability and better dielectric constant uniformity, ensuring consistent performance across the entire PCB.
Features of IsoClad 933: Performance at Its Best
  • Dielectric Constant at 10GHz: 2.33, providing stable signal transmission in high-frequency applications.
  • Dissipation Factor at 10GHz: 0.0016, minimizing energy loss and ensuring efficient power usage.
  • Thermal Coefficient of DK: -132 ppm/°C, maintaining stable dielectric properties even with temperature fluctuations.
  • Peel Strength: 10 lbs/inch, ensuring strong adhesion between the copper layers and the substrate, enhancing durability.
  • Dielectric Breakdown: >45 kV, offering excellent insulation properties and protecting against electrical breakdown.
  • CTE Values: X CTE at 31 ppm/°C, Y CTE at 35 ppm/°C, Z CTE at 203 ppm/°C, providing good thermal stability across different directions.
  • Flammability: UL-94 V0 rating, ensuring the PCB is flame-retardant and safe for use in various environments.
Benefits of Choosing This PCB
  • Less Rigid than Woven Fiberglass: The nonwoven nature of IsoClad 933 makes the PCB more flexible than those using woven fiberglass, allowing for bending and shaping without compromising performance.
  • Highly Isotropic in X, Y and Z Directions: This isotropy ensures uniform performance across all directions, making the PCB reliable in complex circuit designs where signals travel in multiple directions.
Typical Applications
  • Conformal Antennas
  • Stripline and Microstrip Circuits
  • Missile Guidance Systems
  • Radar and Electronic Warfare Systems
2-Layer IsoClad 933 RF PCB Board with 155.4mm × 188mm Size and Dielectric Constant 2.33 1
